Duct Air Sensor for HVAC Wind Speed Velocity Measuring Range 0-70m/s ±2%FS Accuracy

Warranty : 12 months

Type : AF104C

Customized support : OEM, ODM

Place of Origin : Beijing, China

Brand Name : ivan

Model Number : AF410C2

Product name : Speed Meter Velocimetry

Power supply : 12-24VDC

Measuring Range : 0~70m/s

Output : 0-10V/4-20mA

Accuracy : ±2%FS

Material : ABS

Cable length : 1M

Probe length : 200mm

Probe diameter : 14mm

Packaging Details : carton

Port : Tianjin

Supply Ability : 3000 Piece/Pieces per Month

Price : $85.00/units 1-49 units

Contact Now

Low Cost air sensor velocity Wind Speed Duct Air Sensor For Havc
Product Description

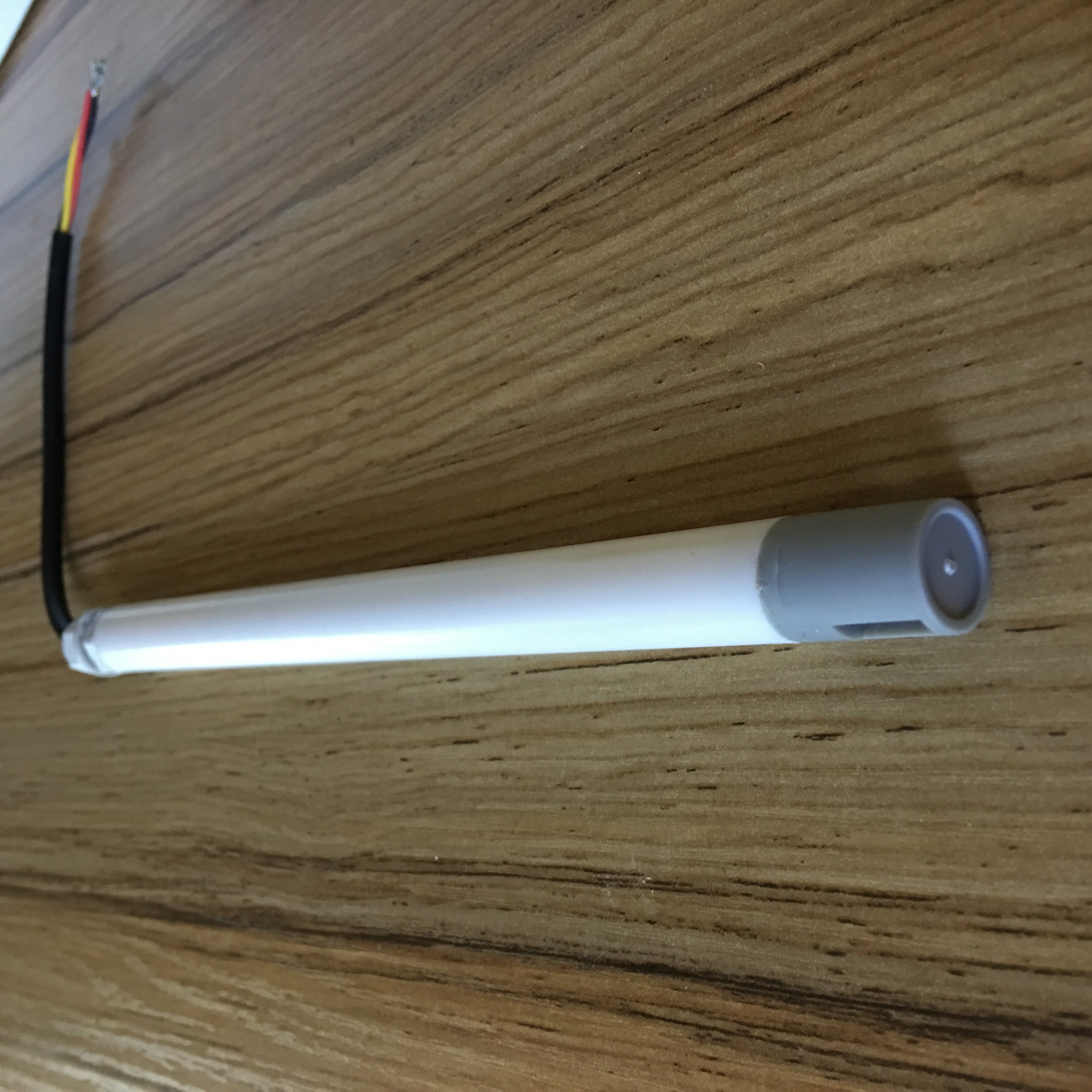

AF410C2 mini air velocity transmitters were developed to obtain accurate measuring results over a wide range of velocity and temperature. A high-quality hot film sensor element based on cutting- edge thin film technology ensures maximum sensitivity, even at lowest mass flows. AF410C2 can be used to the narrow space and measure very low velocity .For HVAC, Ventilation, Air-condition, Purification, Lab, Purification Workshop..
Specifications
Power Supply
12V DC/AC 24V DC/AC 5VDC/AC {Customization}
Measure Range
0-5m/s 0-10m/s 0-15m/s 0-20m/s 0-30m/s
Output
0-5V 0-10V 0-20mA 4-20mA Rs485{modbus-RTU}
Measure Accuracy
±{0.2m/s +3%of MV}
Consumption
2.5W
Protection Rating
IP65
Response Latency
0.2 s
Resolution
0.01m/s
Sensing Elements
Thermal film sensor
Working Environment
Temperature: -20-85ºC Humidity:5%-95%
Probe Length
Installation of flange :150mm / Customization
Material of Probe
ABS Engineering plastic
