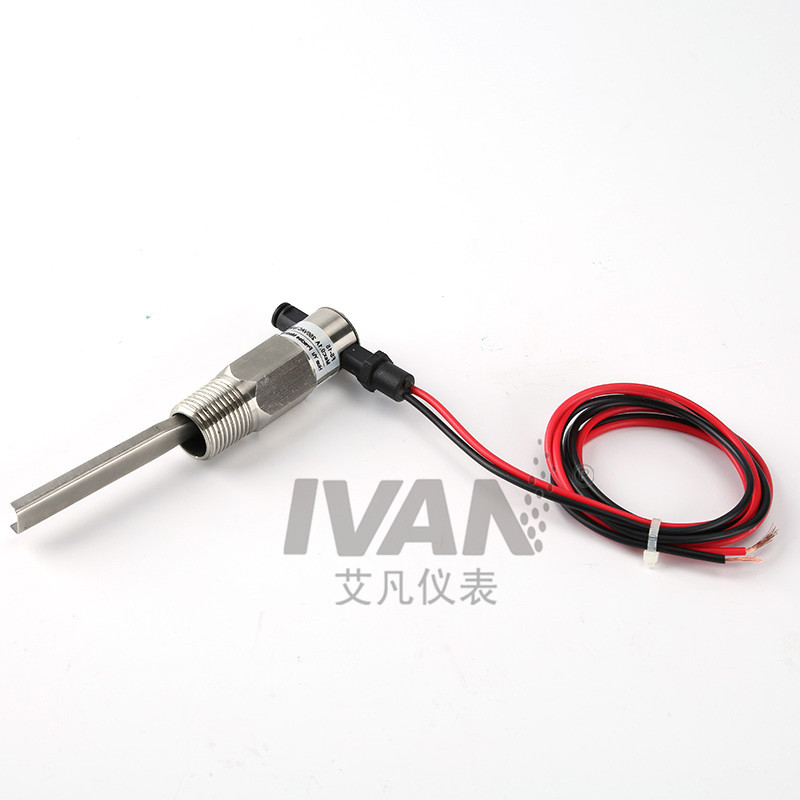

Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle

Name: Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Brand: IVAN
Price: 19.00 USD

Wholesale Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle from china suppliers

Whether the smart : Yes

Place of Origin : Beijing, China

Brand Name : IVAN

Model Number : FS15

Media Type : Liquid

Operating Temperature : -40-90℃

Flow Rate : -

Material : Stainless Steel / brass

Certification : -

Packaging Details : carton

Port : Tianjin

Supply Ability : 5000 Piece/Pieces per Month

MOQ : 5 acres

Price : $19.00/acres 5-499 acres

Contact Now

Product Description

Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle

Specification

Flowmeter unit: L / min
Pipe size	Connect	cut off	Remarks
DN15	3.3	3	The water inlet length of the baffle is two thirds of the pipe diameter
DN20	4.6	4.2
DN25	7,3	7
DN32	15	14.2
DN40	25.3	24
DN50	36	34.4

Setting of switch point if the user requires precise setting of switch point, please put forward it to the manufacturer at the time of purchase for calibration by the factory.When the reed switch (black plastic part) moves against the water flow direction, the action value increases (i.e. alarger flow is required to open the switch), otherwise, the action value decreases.Lock the screws after adjustment.After the user obtains the flow switch, he can be familiar with the operation process of the switch first, and then set it.When the switch is not installed on site, move the baffle by hand, and repeat it after adjustment to verify whether the switch point setting is accurate.In order to monitor whether the switch acts, a multimeter can be connected to the switch circuit to judge whether the action occurs.
